ref: TRIFLEX

TRIFLEX

Antenas Multibandas CB/FM/GSM

TRIFLEX

Electrical Data
• Type:
CB 27 MHz band: 1/4 ? central loaded
FM band: 1/4 ? helical loaded
EGSM 900 MHz band: 1/4 ?
• Frequency range:
CB 27 MHz band: tunable from 26.7 to 27.7 MHz by rotation of tuning cap
AM-FM band: AM 0.15-1.6 MHz, FM 87.5-108 MHz
EGSM 900 MHz band: TX-band 880-915 MHz, RX-band 935-960 MHz
• Impedance:
AM-FM band: 150O unbalanced
CB and EGSM bands: 50O unbalanced
• Radiation (H-plane): 360° omnidirectional
• Polarization: vertical
• Bandwidth at V.S.W.R. 2:1:
CB 27 MHz band: 440 KHz at 27 MHz
EGSM 900 MHz band: 100 MHz
• V.S.W.R. at res. freq.: = 1.2:1
• Max. power:
CB 27 MHz band: 10 Watts
EGSM 900 MHz band: 20 Watts

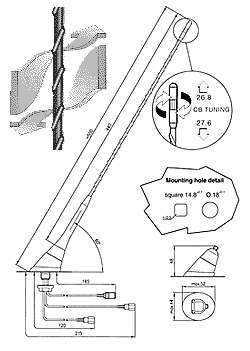

• Cable lenght / Type / Connection:
CB 27 MHz band: 215 mm / RG316 / FME-male
FM band: 165 mm / RG316 / M10x0.75-male
EGSM 900 MHz band: 120 mm / RG316 / FME-male
