Handheld radiostation
Printer friendly...
output power up to 3 W
simple operation with 2 switches and 2 buttons
operation on 10 pregrammed channels
easy-to-read LCD
switchable noise squelch with power saving circuit
built-in test program; error messages are displayed on LCD
is modern handheld radiostation for tactical communication
at the VHF frequency range. This small size, lightweight
and easy to use radio is ideal personal radio for soldiers
especially for company and platoon levels of the armed forces.
Radiostation operates in 30 ÷ 88 MHz frequency band
on one from ten preprogrammed channels. Radiostation provides
the following types of communication: clear voice communication,
scrambled voice communication, digitized voice transmission
and data transmission. All electronic modules of radiostation
are made in SMD technology.
The equipment can be used in any
region of the world; in very harsh environments robust die-cast
aluminum housing is sealed to resist dust, sand, water and
humidity. It withstands shocks and vibrations, immersion,
heat and cold. It can be dropped and withstands thermal
shocks. Tests are carried out according to military standards
(MIL-STD 810E, STANAG).
Technical data:
Technical data:
Frequency band MHz 30 ÷ 88
Number of programmed channels 10
Numer of channels 2320
Channel spacing kHz 25
Output power of transmitter W from 0,1 to 3,0
Modulation analog F3E
digital F1D, 16kbit/s GMSK
Sensitivity µV =0,5 (analog transmission)
=0,7 (digital transmission)
Data transmission kbit/s 16
Duty cycle (1:1:8) h 10
Dimensions mm 210 / 90 / 43
Weight g <900
(with NiCad bartery pack
Basic set consists of:
transmitter-receiver
battery pack
antenna
carrying case
users manual
Optional items:
handset with 2 ears
headset
cloning cable
battery charger
AC power supply for battery charger
fill gun (data programmer)
etc.
|
|
power up to 50 W
simple installation In vehicle
compatible with active speaker
data transmission possibility

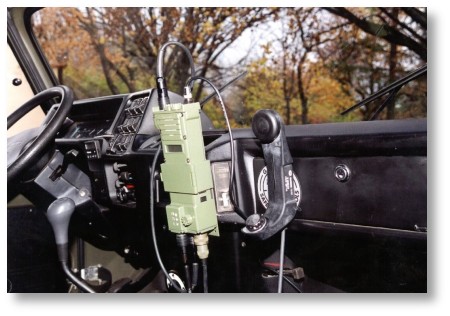

radiostation can be used not only as handheld but also as
vehicular device. The set consists of radiostation, 0526 vehicular
adapter, 0525 power amplifier and 0529 active speaker. Radiostation
can be easily installed in vehicles using adapter, by which
radiostation is supplied from board network 12V or 24V. Power
amplifier enables amplification of transmitted signal even
up to 50W (0,3W, 1W, 3W, 5W, 20W, 50W -depends on configuration).
Using these two elements it is possible to create high power
vehicular set enabling communication on extended territory.
It enables realization of all radiostation functions with
simultaneous team or platoon range increasing. The set can
be offered with additional accessories such as COT 207 microtelephone
or 01316 headset simplifying radiostation use. Vehicular wide-band
antenna 30-88 MHz, fasten base and transformer 0206/4 (12V/24V)
are also available.
Supplying military troops with vehicular
sets, handheld radiostations and telephone set enables creating
radio-access system. set, as a part of telephone network consists
of 4 devices integrated in one body: radiostation, 0526 vehicular
adapter, 0525 power amplifier and 0411 telephone interface.
It enables connection between radio - subscribers
and telephone network and telephone subscribers with radio
network. Radio - subscriber can dial telephone subscriber's
number and get connection with a use of telephone set connected
with telephone network. Communication can be done automatically
or manually by the dispatcher. SR3501 system is configured
on PC computer with managing software P97.01. Programming
of all SR3501 network parameters is possible (e.g. subscribers
list and their authorization) and 3501 radiostation parameters.
radiostation can be used in very comprehensive
way. The simplest solution is using it by soldiers as personal
way of communication. On the basis of radiostation it is possible
to create tactical networks of communication, co-operating
with other systems, e.g. PR4G. Additional devices, special
accessories and different software are increasing its functionality
and possibilities of use.
Technical specification
| Parameter |
Unit |
power amplifier 0525 |
adapter 0526 |
speaker 0529 |
transformer 0206/4 |
| Frequency
band |
MHz |
30 ÷ 80 |
30 ÷ 80 |
30 ÷ 80 |
30 ÷ 80 |
RF output
power:
- for 13.2V
- for 27V |
W |
5, 20
5, 20, 50 |
- |
- |
- |
| Steering
power |
W |
1 ÷ 3 |
- |
- |
- |
| Nominal
impedance |
Ω |
50 |
- |
- |
- |
| Operating
temperature |
°C |
-30 ÷ +50 |
-30 ÷ +50 |
-30 ÷ +50 |
-30 ÷ +50 |
| Environment
requirements |
|
MIL-STD
810E |
MIL-STD
810E |
- |
MIL-STD
810E |
| Dimensions |
mm |
245 x 150 x 85(107) |
190 x 100 x 58 |
65 x 145 x 102 |
245 x 150 x 85(107) |
|
| VHF frequency
hopping manpack transceiver |
|
 VHF/FM
manpack transceiver with a high level of ECCM protection
ensures reliable transmission in a dense electronic
warfare context and offering the widest range of high-level
services.
This
transceiver is part of PR4G family which includes complete
range of transceivers that are interoperable in all
modes (handheld, vehicle, airborne), set of peripherals,
tactical data terminal, and a broad range of accessories,
to satisfy the most varied needs.
Technical data:
| Parameter |
Unit |
|
| Frequency band |
MHz |
30 ÷ 88 |
| Number of channels |
|
2320 |
| Channel spacing |
kHz |
25 |
| Number of keys
memorized |
|
14 |
| Number of frequency
plans memorized |
|
7 |
| Modulation |
|
- F3E compliant with STANAG 4204 in analog modes
- SRC4 in digital modes
|
| Modes |
|
- analog fixed frequency (AFF)
- digital fixed frequency (DFF)
- frequency hopping (FH)
- free channel search (FCS)
- mixed mode (MIX)
|
| Transmission |
|
- digitized voice: DELTA 16 kbit/s EUROCOM D/1
- data: MIL STD 188-114 or CCITT V24/V28 computer
interface, 50 to 4800 bit/s
- interoperability with VHF/FM radio set in
fixed frequency according to STANAG 4204
|
| Power |
W |
5 / 0,5 |
| Frequency stability |
ppm |
±2 |
| Harmonic radiation |
dB |
>60 for 5W |
| Spurious radiation |
dB |
>70 |
| Power supply |
V |
24 (18 ÷ 33) |
| Sensitivity |
dB |
>22 for a signal
0,5µV |
| Audio output power |
W |
0,5 / 4 |
Consumption:
reception
transmission |
mA
|
≤800
≤9 |
| Temperature range |
°C |
-30 ÷ +50 |
| Weight |
kg |
5,7 |
| Dimensions |
mm |
291 x 91 x 245 |
| Tightness |
|
immersion - proof
under 1m |
Basic set consists of:
transceiver 5W
short antenna (1,25 m)
NiCad battery
handset
carrying harness
Optional items:
headset (2 ears) headset (1 ear)
tactical data terminal
smart handset
loudspeaker
dry cell box
antenna with flexible gooseneck (2,6m)
antenna with flexible gooseneck (1,5m)
|
|
|

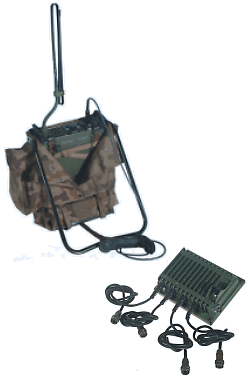

| VHF
frequency hopping compact vehicular radiostation
|
|
VHF/FM, compact
vehicle transceiver with a high level of ECCM
protection ensures reliable transmission in a
dense electronic warfare context and offering
the widest range of high-level services.
The station is part of
PR4G family including a complete range of transceivers
that are interoperable in all modes (handheld,
vehicle, airborne), a set of peripherals, tactical
data terminal, and a board range of accessories,
to satisfy the most varied needs. Ready to be
installed in all types of military vehicles
|
Technical
data:
| Parameter |
Unit |
|
| Frequency band |
MHz |
30 ÷ 88 |
| Number of channels |
|
2320 |
| Channel spacing |
kHz |
25 |
| Number of keys
memorized |
|
14 |
| Number of frequency
plans memorized |
|
7 |
| Modulation |
|
- F3E compliant with STANAG 4204 in analog modes
- SRC4 in digital modes
|
| Modes |
|
- analog fixed frequency (AFF)
- digital fixed frequency (DFF)
- frequency hopping (FH)
- free channel search (FCS)
- mixed mode (MIX)
|
| Transmission |
|
- digitized voice: DELTA 16kbit/s EUROCOM D/1
- data: MIL STD 188-114 or CCITT V24/V28 computer
interface, 50 to 4800 bit/s
- interoperability with VHF/FM radio set in
fixed frequency according to STANAG 4204
|
| Power |
W |
50/5/0,5 |
| Frequency stability |
ppm |
±2 |
| Harmonic radiation |
dB |
>50 for 50W |
| Spurious radiation |
dB |
>80 |
| Power supply |
V |
24 (18 ÷ 33) |
| Sensitivity |
dB |
>20 for a signal
0,5µV |
| Audio output power |
W |
0,5 / 4 |
Consumption:
reception
transmission |
mA
|
≤850
≤8,7 |
| Temperature range |
°C |
-30 ÷ +50 |
| Weight |
kg |
13 |
| Dimensions |
mm |
300 x 138 x 340 |
| Tightness |
|
immersion - proof
under 1m |
Basic set consists
of:
transceiver 50W
mounting without absorber
end fed vehicular antenna (2,7 m)
RF antenna cable (3 m)
power supply cable (3 m)
handset
Optional items:
headset (2 ears)
loudspeaker
retransmission cable
smart handset
remote control unit
tactical data terminal
shock mounting with absorbers
|
|
