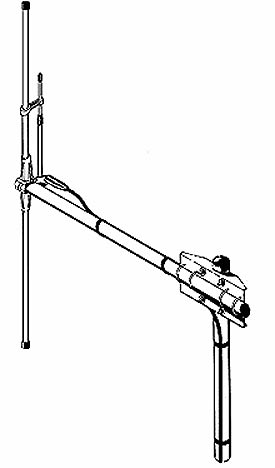

ANTENA SIRIO SD FM DIPOLO 87 PARA AVIACION 87 - 194 MHZ

Unity-gain, Horizontal or Vertical polarization
Directional (if Horizontal) or Omnidirectional (if Vertical)
High power handling capability
Made of aluminium alloy 6063 T-832
Type: 1/2λ dipole
Frequency range: 87...194 MHz tunable by cutting
Impedance: 50 unbalanced
Radiation (H-plane): directional (if Horizontal) or omnidirectional (if vertical)
Radiation angle: 0°
Polarization: horizontal or vertical
Bandwidth @ SWR 1.5: ≥ 14.9 MHz @ 87 MHz
SWR @ res. freq.: ≤ 1.2
Max. power: 300 Watts
Feed system / position: Gamma match / Center
Connection: UHF-female

ANTENA SIRIO SD FM DIPOLO 87 PARA AVIACION 87 - 194 MHZ

Materials: Aluminium, EPDM rubber, zamak, zinc plated steel, chromed brass
Wind load / resistance: 99 N at 150 Km/h / 160 Km/h
Wind surface: 0.08 m²
Height (approx.): 1600 mm
Weight (approx.): 1850 gr
Turning radius: 900mm
Operating temperature: -40°C to + 80°C
Mounting mast: Ø 35-50 mm
